Technical Details Overview

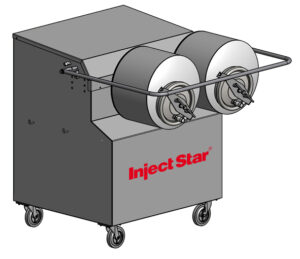

Gusto-2/55

Gusto-3/55

container volume: 2 x 55 l
capacity: 2 x 30 kg
vacuum: adjustable up to 85%
high performance vacuum pump: 0,55 kW
rotational speed of containers: 1,5-20 rpm
drive motor: 2 x 0,55 kW
cooling system: 1,22 kW
total power requirement: 3,0 kW
dimensions (lxwxh): 144x164x139 cm
weight: 700 kg

container volume: 3 x 55 l
capacity: 3 x 30 kg
vacuum: adjustable up to 85%
high performance vacuum pump: 0,55 kW
rotational speed of containers: 1,5-20 rpm
drive motor: 3 x 0,55 kW
cooling system: 1,22 kW
total power requirement: 3,5 kW
dimensions (lxwxh): 184x164x139 cm
weight: 800 kg

Compact base frame – Sophisticated container system

The containers run completely independent from each other. Production parameters can be programmed and controlled individually.

Individually adjustable direction and speed of rotation for each container due to separate container drives.
Precise individual setting and control of process temperature by built-in temperature sensors and radio transmission per container.
Optimal cooling by dedicated glycol circuits per container.
Variable setting of vacuum for each container.
Run and idle time settings easily, individually programmable via computer control.

Optimal hygiene for your laboratory

The system is designed in detail for highest hygienic standards for laboratories and test kitchens – without any hidden areas or areas with potential for material accumulation. The containers of the Gusto series can easily and efficiently be cleaned with a low pressure hose and preset cleaning program.

Reliable safety for your staff

You can start the system only when the safety bar is closed. Any abnormal movement of this bar will cause an automatic stop of the system. In addition a manual emergency stop is available.
